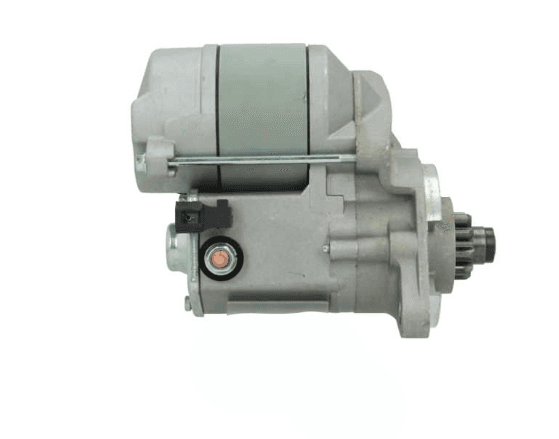

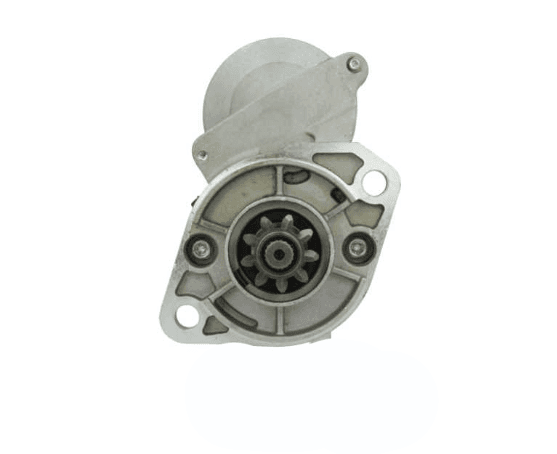

Startmotor Kubota GL19 - GL35 | GL200 - GL338 | L245 - L3430 | KL27 - KL330

De startmotor is door een gecertificeerde leverancier geleverd en volledig getest. Met grote zorg zijn de compatibele modellen erbij gezocht!

Technische gegevens

• Spanning (V) 12
• Vermogen (kW) 1,2
• Pasrand (mm) 82,3
• Aantal tanden 9
• Pinion Home Position (mm) 25,0
• B+ aansluiting M8
• Aantal montagegaten 2

Atlas Copco

• CC 1100 (Plus), CC 1100C (Plus), CC 1200 (Plus), CC 1200C (Plus), CC 1250 (Plus)

Bobcat

• 325, 325G, 328, 328G, 329

Bomag

• BW 100 AC-5, BW 100 AD-4, BW 100 AD-5, BW 120 AC-4, BW 120 AC-5, BW 120 AD-4, BW 120 AD-5, BW 125 AC-4, BW 125 AD-4

Hitachi

• EX33MU

Hinomoto

• NX19, NX21, NX23, NX25, NX26, NX27, NX29, NX32, NX33, NX35
• NX200, NX201, NX220, NX221, NX240, NX241, NX260, NX261, NX268, NX277, NX280, NX281, NX300, NX301, NX320, NX321, NX337, NX338

JCB

• VMT260

Kubota

• GL19, GL21, GL23, GL25, GL26, GL27, GL29, GL32, GL33, GL35
• GL200, GL201, GL220, GL221, GL240, GL241, GL260, GL261, GL268, GL277, GL280, GL281, GL300, GL301, GL320, GL321, GL337, GL338
• L245, L2250, L2500, L2550, L2650, L2850, L2900, L2950, L3010, L3030, L3130, L3240, L3300, L3400, L3410, L3430
• KL27, KL30, KL33, KL36, KL43, KL225, KL245, KL270, KL300, KL330, KL360, KL430, KL2450, KL24R
• FT21, FT23, FT25, FT220, FT240

Schäffer

• 2030

Terex

• TA 2, TA 2E, TA 2H, TA 2S, TA 2SE, TA 2SEH, TA 2SH, TV 1000, TV 1000-1, TV 1200, TV 1200-1, TV 1200H, TV 1200H-1

OEM ter referentie

• 1280008460, 1280008460SEL, 1280008461, 1280008462, 1280808462, DSN2132, DENDSN2132
• 3407016081, 3407016083, 3407016800, 3407016801, 3407016802, 3407016803
• 34070-16081, 34070-16083, 34070-16080-0 34070-16800, 34070-16801, 34070-16802, 34070-16803
